Roflocator in Stock

Just wanted to make a quick post showing a slightly newer version of the Roflocator up for sale. I currently have 3 in stock and ready to ship. If you are interested in purchasing, please email me at admin@leetupload.com for details, click the PayPal button below or visit my Tindie page!

I sell on Tindie

Note: For international orders, please contact me for the exact cost of shipping.

Note: For international orders, please contact me for the exact cost of shipping.

Customization


In the meantime, here are some new pictures!

IMG_20150412_111938 IMG_20150412_112109 IMG_20150412_112128

Posted in Uncategorized | Leave a comment

The Roflocator: My Journey into Product Development

I sell on Tindie

Note: For international orders, please contact me for the exact cost of shipping.

Customization


I want to use this page to convey my thought and build process when building the Roflocator. The reason why I developed this device was because I once lost my quadcopter over an interstate and somehow found it in a parking lot across the highway by guessing its trajectory. I figured that there would be a market for some type of locator that does not rely on the pay-as-you-go model, such as the GSM GPS locators.

Breadboard Version

My first rendition consisted of the below pictures where I had a full arduino uno board and a 433MHz antenna that communicated the GPS coordinates to the other arduino and displayed them on an LCD screen. At this stage, I did not consider too much about the capabilities of the current 433MHz radios. After testing it out in the field, I quickly learned that this would not work (I could only walk down two flights of stairs before it would lose radio signal).

IMG_20140814_194525IMG_20140814_194531IMG_20140812_211307 IMG_20140812_211152

After doing a heavy amount of research, I stumbled upon the low power forums for radios and learned about the RFM69W. There were many new obstacles that I ran into when trying to get this device to work with my current setup. I had to choose the RFM69W model over the RFM69HW given that the latter pulls 130mA and the former pulls 45mA. The microcontroller that I settled on (after ruling out putting together my own arduino, due to the level of cost and effort) was an arduino mini pro, which has a maximum draw of 150mA — this would explain my choice for going with the lower mA pull with the radio, provided that I have a GPS and/or an LCD screen pulling power as well from the microcontroller. Another restriction for the RFM69W was that it could only pull power on 3.3v, which was yet another limitation that I had to overcome (originally when I had the arduino uno, which has a 3.3v and a 5v output, I had to use a voltage divider when my GPS had to use the only free output of 5v).

After using a wire that was the 1/4 wave length of a 433MHz signal as my antenna, I upgraded it to a 50 ohm impedance helical antenna measured at a full wave length of my 433MHz signal. This greatly improved the performance of my still breadboard setup, allowing my signal to propagate through apartment buildings and shrubbery. Much of my antenna and frequency tuning/analysis consisted of uploading new register modifications to the RFM69W (such as bitrate, power level, frequency deviation modulation, etc.), walking outside, and seeing how far I could go with the new register adjustments — all of which was quite the arduous process.

Perfboard Version

Now that my product seemed to be coming together, I wanted to make it more official looking as opposed to just a breadboard. I ordered a couple of perfboards and some wire, and got to work. I quickly learned that my soldering skills were not quite up-to-snuff. Countless nights I spent soldering all 150+ pins. I threw myself into the deep end. Between soldering on headers onto all of the modules, soldering them onto the perfboard, routing the wires in a neat and organized fashion across the perfboard, then soldering the wires onto the connectors, it was a rough time.

IMG_20140913_182046 - Copy Receiver LCD Quadcopter GPS Installation

PCB Design and Printing

With my finished perfboard product in hand, I had another obstacle to overcome: PCB design. I had no prior knowledge as to how any of this worked. I didn’t know what tracing was, what Eagle was, and how important pitch was. To create my board, I had to first create all of the other boards in Eagle that would be used to create the size of the holes and traces onto my two PCBs. This process took me about a week or so to complete. Considering that the only diagram I had in Eagle was the arduino pro mini, I had many more modules to create before I could lay them out. I used OSHPark to print out my boards, and had a great experience with them. Unfortunately, for my first batch of boards, I did not make the drill hole sizes large enough to accommodate the pins for my RFM69W. After yet another deep end of the pool experience, and another set of PCB boards later, I had printed and received my first custom set of successful PCBs.

IMG_20141001_224357

Vendor Relationships

Dealing with the vendors was a quest in itself. Negotiating with manufacturing facilities in China to solder the headers onto my modules proved to be difficult, given the following: they wouldn’t want to do it because of the cost associated with it, and that English was not their strong suit. With the help of my Chinese friends to craft a convincing email, this still proved to be difficult. After many emails back and forth, I received, after 3 weeks of waiting, my arduino pro mini soldered with the headers. Success. Other obstacles I ran into was with receiving my radio module with the breakout board surface mount soldered on — these guys were saints. They went out of their way to surface mount and include their breakout boards for free along with a just $1 charge for soldering the headers on as well. The only trouble I had was a bit of the email communication back-and-forth, and I received the headers soldered on at an angle (though, this was due to the boards not being the standard width that would fit on a board with 2.54mm holes spacing, so the tech was making an assumption and attempting to be courteous). That’s no matter though, as the pins were slightly adjusted to accommodate my PCB’s pin spacing.

Finished Product

After getting the boards professionally soldered on all together, I had almost a finished product. Now all I needed to do was to solder the on/off switch together, cut out two holes in the PCB case to fit my components, and hot glue it all down. I just finished this a few hours ago prior to writing this article.

Roflocator Welcome Screen

The Roflocator Welcome Screen

Inside the Roflocator

Inside of the LCD receiver

LCD Receiver Components Roflocator GPS Transmitter

Prior to placing the receiver into the case     The GPS transmitter

Final Thoughts

I am thankful to say that this project is complete, and I have gone from stem-to-stern through the product development process: I developed the product, wrote the firmware, QA’d and performed frequency analysis, negotiated with vendors for sourcing, designed and printed the PCBs, and put it all together in a final product box. This has been a great experience for me in the hardware world and I hope to continue to expand my knowledge in this space.

Posted in Uncategorized | 7 Comments

The Roflocator – Now Taking Pre-Orders

Note: For international orders, please contact me for the exact cost of shipping.

Customization



Have you ever lost your quadcopter? Do you lack the means of tracking your quadcopter? The Roflocator is the solution to your problems. This device tracks your quadcopter and constantly notifies you of its current coordinates. It’s simple to install, cost effective, and easy to use.

How does it work?

The Roflocator has two transceivers that can transmit and receive data over a large range. One of the transceivers sits on the quadcopter while the other is kept on your person. Once a GPS connection is locked with enough satellites (typically under 10 seconds in optimal conditions), the transceiver will begin to beacon the coordinates specifically to your transceiver. The coordinates will then be displayed on the LCD screen and you will be able to keep track of your quadcopter’s exact location at all times.

What is included?

1 x quadcopter GPS transceiver
1 x receiver

Who is this solution tailored toward?

People who wish to track their quadcopter without the hassle of paying for a monthly SIM card along with the cost of a device to transmit the coordinates, or for individuals who wish to fly their quadcopter in a remote area where cell phone coverage covered is scarce.

What will the final product look like?

The final product will have an ABS plastic enclosure for the receiver with a 9v battery enclosure. The PCBs will be professionally manufactured and lead free (ENIG finish).

Customizable Orders

Below is a list that articulates what packages you will be able to purchase. The GPS enclosure will be the only feature that will alter the price.

Battery connector: 9v Battery or 3.7v Lithium Ion Polymer
GPS Enclosure: Yes or No
Firmware: Longitude/Latitude Only (longer battery life) or Altitude, Speed, and Longitude/Latitude (shorter battery life)

Prototype Pictures

Quadcopter GPS Transmitter

Quadcopter GPS

Receiver

Receiver LCD

Receiver LCD



The GPS coordinates are partially blurred in this photo.

Installing in WLToys V262 quadcopter

Installation

Installation

Technical Specifications

Quadcopter GPS Transmitter

Radio Frequency: 433MHz
Range (line-of-sight, optimal conditions apply) : ~1KM
Range with Interference: ~200M
Battery: Default is a 9V battery — customizable to accept 3.7V Lithium Ion Polymer rechargeable battery

Receiver

Radio Frequency: 433MHz
Range (line-of-sight, optimal conditions apply) : ~1KM
Range with Interference: ~200M
Battery: Default is a 9V battery — modifiable to accept 3.7V Lithium Ion Polymer rechargeable battery
LCD Resolution with backlight: 48px x 84px
Enclosure: ABS Plastic

When and where can I buy this?

By following the link below, you will be able to pre-order The Roflocator. Please allow 3-4 weeks lead time for production.

Note: For international orders, please contact me for the exact cost of shipping.

Customization



Posted in Uncategorized | 5 Comments

How to Mount a Nexus 7 Tablet

I wanted to mount a Nexus 7 tablet in my vehicle after seeing posts on mbworld.org. Could be fun, right?

Well, here are some things to consider:

  • Tablets are not made for this environment, especially considering the operating temperature of a lithium ion battery is 130F, and the internal cabin of a vehicle can reach extreme temperatures, certainly above 130F.
  • Yes, it can be stolen. So can my stereo.
  • Keeping it docked 24/7 will introduce a charging issue.

I will address these later.

Benefits

  • Large screen
  • Navigation sync’d with Google Maps
  • Streaming music and all sounds via bluetooth
  • Pandora
  • The Internets
  • Torque (OBD2 information streamed in real-time)
  • Potential for streaming reverse backup camera

Here is what you will need:

  • Nexus 7 tablet
  • 2 part epoxy
  • Shower door catches
  • 10′ micro USB 2.0 cable
  • Round sticky feet
  • Tablet case (any will honestly do)
  • Some battery pack with fast input, such as 20w @ 2A, and high capacity: e.g. 15k mAh
  • ViseeO Tune2Air WMA1000
  • DC inverter (or any cigarette lighter that has a USB port that provides 2A)
  • Windshield shade
  • Patience

Software:

  • Tasker app (it’s cheap, and worth it)
  • ElementalX for rooted Nexus 7 (this enables fast-charging)
  • Deep Sleep

Now that we have our materials, let’s mount the tablet. Open the lid where the current monitor resides in the vehicle. With the lid up, measure underneath where you want your shower door catches to reside. What’s nice about these is that there is a white nub that is spring-loaded and will rest right underneath your screen door lid and exert pressure against the bottom of the monitor “floor”.

Once that’s all measured, place the cover on the tablet and mark where you want the shower door catches to lay on the Nexus 7 tablet case. Use my pictures below for reference.

IMG_20140614_154204 IMG_20140614_154212 IMG_20140614_154224

Great. Next, take the rubber feat and place them in the recessed area where the tablet will be sitting. These will be behind the tablet and act as a means of supporting the tablet as it is being forced in place by the shower door catches.

Excellent. Plug in and sync up the tablet to the ViseeO Tune2Air WMA1000. This will enable us stream music from the tablet, through the car speakers, and control skipping song tracks from our steering wheel. This is a life-saving device. The sound quality is brilliant. Also, remember to plug in your tablet. This is pretty important. I wove the wire out the back, onto the dash, in between the windshield and the dash (it slides down inside easily). I then ran it through the passenger’s side, in the side of the glove box (after taking the side cover off). I then plugged the USB cable into the DC inverter which is plugged into the switched cigarette lighter.

Next, setup Tasker. I use my phone as a hotspot for the tablet. I am also lazy. This is where Tasker comes into play. Create a profile with Tasker such that WiFi tethering is enabled when your car’s bluetooth is enabled (this happens when the key in the ignition is turned to the first or second stage). Have it disable WiFi tethering when the key is placed into the off stage. There are other nifty things you can do with Tasker as well. Such as, turning the screen on along with the WiFi and bluetooth when any sort of charge is entering the tablet. Perform the opposite action when DC is cut from the tablet. There are plenty of other functions you can do with your tablet, but this is just a start.

Here is the final product:

IMG_20140614_162511

Lessons Learned

Now, my tutorial does not stop with the above. This just so happens to define where I thought I was finished. Here are the problems that arose, and how I fixed them to the best of my abilities.

Heat

Where I live, it can easily be 100F out during the summer, and humid. And be incessant. How did I solve this issue? Well, I have tinted windows, so that helps marginally. I make sure that the sunroof shade is up, and I park in the shade whenever I can. But most importantly, I got a windshield shade. That pretty much did the trick for me! Prior to that, my tablet would be scalding hot to the touch, and would auto-shutdown. Lesson number one.

Battery Life

This is a big one. Considering that the purpose of this project was to semi-permanently install this device in my vehicle, it’s gotta get juice somehow. Here were my ideas and how the evolved over time:

  • Let it sit in the vehicle with the screen auto-off along with WiFi and bluetooth off.

Well, this would be great, in theory. Within a 24 hour period, I would lose 10% of my tablet’s battery life. I figured that my alternator would charge it back up during my commute to work or anywhere else, but I would only pull a few percent per trip. This was after exploring the option of “fast-charging” provided from the hacked kernel, ElementalX. In theory, the tablet would be able to stay on for approximately 10 days, then I would have to take it out and charge it prior to my next trip. Not worth it, in my opinion.

  • Turn the tablet on and off based upon the DC state.

This one didn’t last me very long. Sure, I saved battery life, but waiting for the tablet to boot up each and every time I switched on the ignition was infuriating. Especially since it took probably a 2 or more full minutes for the tablet to turn on, all of the apps to load, and for Pandora to start playing my music. If still interested, though, you can achieve this with the following command:

fastboot oem off-mode-charge 0

When the tablet receives any form of DC, it will power on the tablet.

  • Why not keep the tablet always charged by an unswitched power source such as your seat motor or your OBD2?

Nope. Not a good idea. Unswitching your cigarette lighter by messing with the fuse (I think that it is fuse #71 for my car) can cause overheating and not good things to come thereafter. Other than that, your battery will miraculously drain. Not a good idea.

  • Constantly trickle-charge the tablet with a 15k mAh battery pack while charged by the alternator

I tried this, and my battery pack died in 4 days. So much for trickle-charging.

  • Combine the first method of leaving the tablet on 24/7 and on the 10th day, plug it into the battery pack to charge overnight.

This was my final solution. Now, I can do numerous things to improve this setup: I can put a Qi charger on the back of the tablet and run that to the battery pack, which in turn is plugged into the battery pack. The other USB cable will run to the cigarette lighter. In between, I can fashion a switch to cut off the USB cable running from the Qi charger, and re-engage when the vehicle is off. When I re-enter my vehicle, I flip the switch back off again. At some point in time my battery pack will need to be recharged in my home. One way to stave-off this issue slightly would be to find a faster means of charging the battery. The highest input charge I’ve found on a battery pack so far is 20V @ 2A.

If you have anything to contribute to this project, please leave a note in the comments. I hope that this helps someone!

Posted in Uncategorized | Leave a comment

Analyze and Crack GSM Downlink with a USRP

A fairly-well documented article has already been written about this for RTL-SDRs. But what about the USRP folks out there? The article’s cited files to use are even RTL-SDR geared. The easy response to that would be to suck it up, and purchase an RTL-SDR dongle. Well, you would be mistaken. Not every location has GSM bands that fall under 1.7GHz (specifically 850MHz for AT&T and T-Mobile). In some locations, CDMA rides on these bands. This can be a bit frustrating. Well, look no further than here. Fire up your USRP (read: HackRF, BladeRF, USRP, etc.) and follow the directions for the RTL-SDR here and stop at the point where it asks you to load their cfile for testing.

From here on out, follow these directions.

  1. Find out where GSM is transmitting on a non-hopping frequency. For me, this is 1.9826GHz. Now, determine your gain necessary to receive GSM correctly. This depends on your antenna and device, so you may need to tweak this a bit before airprobe starts receiving data. 34 worked well for my setup. We will also record at a sample rate of 1,000,000 (1e6).
  2. Load wireshark in another tab and set it to listen on lo and use the filter gsmtap.
  3. cd airprobe/gsm-receiver/python/src/
  4. ./gsm_receive_rtl.py -f 1982600000 -s 1e6 -g 34
  5. A GNURadio FFT will appear. This will give us a good idea if the signal is strong and working with airprobe. Mess with the gain and click on the center of the peak each time you alter the gain. You should see a wave of hex absorb your terminal session when you hit the right spot, as well as in wireshark.
  6. To record this for cracking, execute the command below:
  7. uhd_rx_cfile –samp-rate=1.0e6 -f 1982600000 -g 34 /location/of/file/to/save/gsmRX.cfile
  8. Download and install pytacle; you will also need kraken and the kraken rainbow table for pytacle to work
  9. Pytacle should be pretty straight forward. Follow his YouTube video for more guidance, but all you need to do is point to the full directory and file location of each field found within the Properties section of the application. After that, you will have a cracked GSM session!

GSMEverythingGoing

Posted in Uncategorized | 1 Comment

GNU Radio Companion: Blind Replay Attack with a USRP

Replay attacks are probably the most rewarding tests to perform with a software defined radio — instant gratification (that is, if it works). No need to know the modulation, baud rate, deviation, frequency — well, you definitely need to know the frequency. You get the idea. From a post I submitted a while back with replaying a wireless outlet switch, it took a bit of work. But this is not always necessary, especially if your end-goal is simple replay, and not crafting of custom packets.

Given the aforementioned blog post, I was able to replay the signal for the wireless outlet switch and execute a simple “on” and “off” command (replaying the same command while the device is off, turns it on, and vice-versa). With the power of a USRP (if you can manage to buy one and make it stably work with GNU Radio, good for you), one is able to replay messages recorded by the USRP.

To record a message, one needs to know the frequency, bandwidth, and an educated guess at the appropriate gain (depends on your setup), are all necessary. Below is an example of a flow graph to be used for the recording piece. The source is the radio that is capable of RX, and the sink is the file we will write. We record and write in complex-float (aka complex). We do not need to demodulate, as it will replay as the file is.

radioTX

To replay this content, we simply point to the source file and direct this to our now sink, which is a radio capable of TX/RX. We keep all of the previously recorded variables the same, otherwise the radio will have a spasm and our results will not be desirable.

radioRX

Good luck and have fun!

Posted in Uncategorized | Leave a comment

X Gon’ Give it to Ya: Transmitting FM Radio Over the Air Waves

Who out there misses all of the dog barking, grunting, and terms of endearment toward women provided by our beloved DMX? Something tells me that he is missed on our radio waves. With this brief entry, I will quickly breeze through showing how you can broadcast DMX one more time in your neighborhood (if your country allows for this, of course — this experiment was done at low db…).

I’m still learning how to use GnuRadio Companion (GRC), but I thought it would be of use to share this with the community, those that wish to have a bit of instant gratification with their newly acquired [HackRF, BladeRF, Ettus, etc.] and freshly compiled GRC on their nix VM. Below is a screenshot of my GRC setup along with the GRC file thereafter. The file source (as you can see in the screenshot below) had to be down-sampled at a rate of 16bit in order for GRC to be able to broadcast the audio file. I have it on loop, and the signal to transmit this onto can be adjusted with a slider. This setup is for an Ettus B100. However, with some minor tweaking, this should work on the previously mentioned TX/RX devices.

To modify your audio file, install ‘sox’ along with any libraries needed for whatever file you are handling. If handling an MP3 file, search for libsoxmp3 (or something to that effect). For the file in question, I ran:

sox DMX\ -\ What\'s\ My\ Name.mp3 -b 16 dmx_whats_my_name.wav

That’s it! Now your neighborhood will thank you for rejuvenating a lost art and making it available to everyone, once again.

fm_tx_dmx

grc_fm_tx_screenshot

fm_broadcast.grc

Posted in Uncategorized | Leave a comment

Replay Attack: Remote Control Outlets and RFCat

In my previous post, I discussed the possibility of controlling one of those handy remote controlled outlets. Well, I got a hold of one, and decided to put my previous post to the test. I’ve even included a video, along with the code that I used. What more could you ask for? In the video, I attach my monitor to the remote control outlet switch and use my RFCat device flashed in my previous previous post to send a custom packet of data via 433.925MHz to the device. As you can see, the same signal is sent each time, turning the device on and off via its relay.

To better understand what is going on in this code, refer to my previous post that I have mentioned numerous times already.

#!/usr/bin/env python

import sys
import time
from rflib import *
from struct import *
import argparse
import pprint
import bitstring


keyLen = 0
baudRate = (1 / 0.000158) # pulse width
frequency = 433945000
repeatNum = 5

def ConfigureD(d):
	d.setMdmModulation(MOD_ASK_OOK)
	d.setFreq(frequency)
	d.makePktFLEN(keyLen)
	d.setMdmDRate(baudRate)
	d.setMaxPower()
	d.setMdmSyncMode(0)

	print "[+] Radio Config:"
	print " [-] ---------------------------------"
	print " [-] MDMModulation: MOD_ASK_OOK"
	print " [-] Frequency: ",frequency
	print " [-] Packet Length:",keyLen
	print " [-] Baud Rate:",baudRate
	print "[-] ---------------------------------"


#raw what we are sending
bin_str_key =  "1111010101010101110000010"; # This is the RC Switch Outlet payload;

#make it longer so it looks right
long_bin_key = "";

for k in bin_str_key:
	x = "*"
	if(k == "1"):
		x = "11100" # <mossmann> A zero is encoded as a longer high pulse (high-high-low)
	if(k == "0"):
		x = "1000" #<mossmann> and a one is encoded as a shorter high pulse (high-low-low).
	long_bin_key = long_bin_key + x

print "[+] Binary (PWM) key:\n\t",long_bin_key,"\n"

# Elongate this by 7 iterations since this is what the remote outlet switch requires
long_bin_key_modified = long_bin_key*7;

key_packed = bitstring.BitArray(bin=long_bin_key_modified).tobytes()


keyLen = len(key_packed)

print "[+] Key len:\n\t",keyLen,"\n"
print "[+] Key:\n\t", key_packed.encode('hex'),"\n"
print ""

d = RfCat()
ConfigureD(d)

print "[%] Transmitting key: ",repeatNum," times\n"

d.makePktFLEN(keyLen)
for i in range(0,repeatNum):
	sys.stdout.write( "." )
	d.RFxmit(key_packed)

sys.stdout.write("Done.\n")
Posted in Uncategorized | 7 Comments

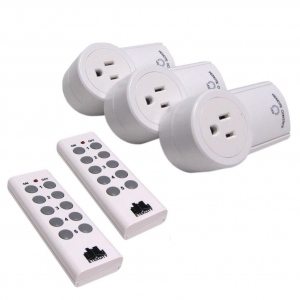

Non-Return-to-Zero ASK/OOK Signal Replay

Radios have been around for a long time. Security has not played a very long role within this realm. Consequently, precautions such as CRC, encryption, etc. are not always considered during the transmission of a radio signal. The below tutorial will highlight a replay of a modulated ASK/OOK signal that is non-return-to-zero (NRZ) encoded.

The 433.925MHz band is commonly used across many devices found all over our surroundings. From wireless doorbells to garage door openers, this band is fairly active in our daily lives. The demonstration of replay we will be covering will be wireless RC switches that are common in European households. These devices can be controlled wirelessly to turn on and off any electrical device connected. Naturally, this is an interesting device to investigate. Below is a picture of the device mentioned.

png;base64b874258e77870a44

In short, signals are sent as NRZ encoded in the signal as it is sent to the receiver, and subsequently decoded and the function is processed. NRZ line code is binary code where a ‘1’ is represented as a positive voltage and a ‘0’ is represented as a negative voltage. The longer the pulse width, the greater the amount of data. Below is an example of NRZ:

png;base64569decdf1b4785a1

So that we have a more controlled environment and since this is in the US, we will be using an Arduino Uno, an RF link set, and an Arduino ported RC Switch library. This will serve as our example remote controlled RC switch since they are not as common here as they are overseas.

Materials needed:

Let’s get started. First, we need to connect and configure our Arduino with the RF Link set and program our microcontroller as a transmitter with the rc-switch library. In the below image is my setup as an example. For my RF 433MHz transmitter (as both the transmitter and receiver tend to vary in pin count and voltage), I have 3 pins on my transmitter: GND, VCC, and DATA. On the breadboard, connect the transmitter directly and connect the appropriate pins — GND to the GND pin on the Arduino, VCC to 5v pin, and DATA to whatever digital pin you choose.

png;base64e8a809f4868df584

http://rc-switch.googlecode.com/svn/wiki_images/wiring_transmitter.png

With the Arduino physically configured correctly, fire it up and commit the following code (modifying to your pin setup where necessary).

/*
  Simple example for sending

  http://code.google.com/p/rc-switch/
*/

#include <RCSwitch.h>

RCSwitch mySwitch = RCSwitch();

void setup() {
  mySwitch.enableTransmit(2);  // Using Pin #2
}

void loop() {
  mySwitch.send("1100101"); // Send the message 0x65, in ASCII, ‘a’
  delay(1000);  // 1 second delay per transmission; 1000ms
}

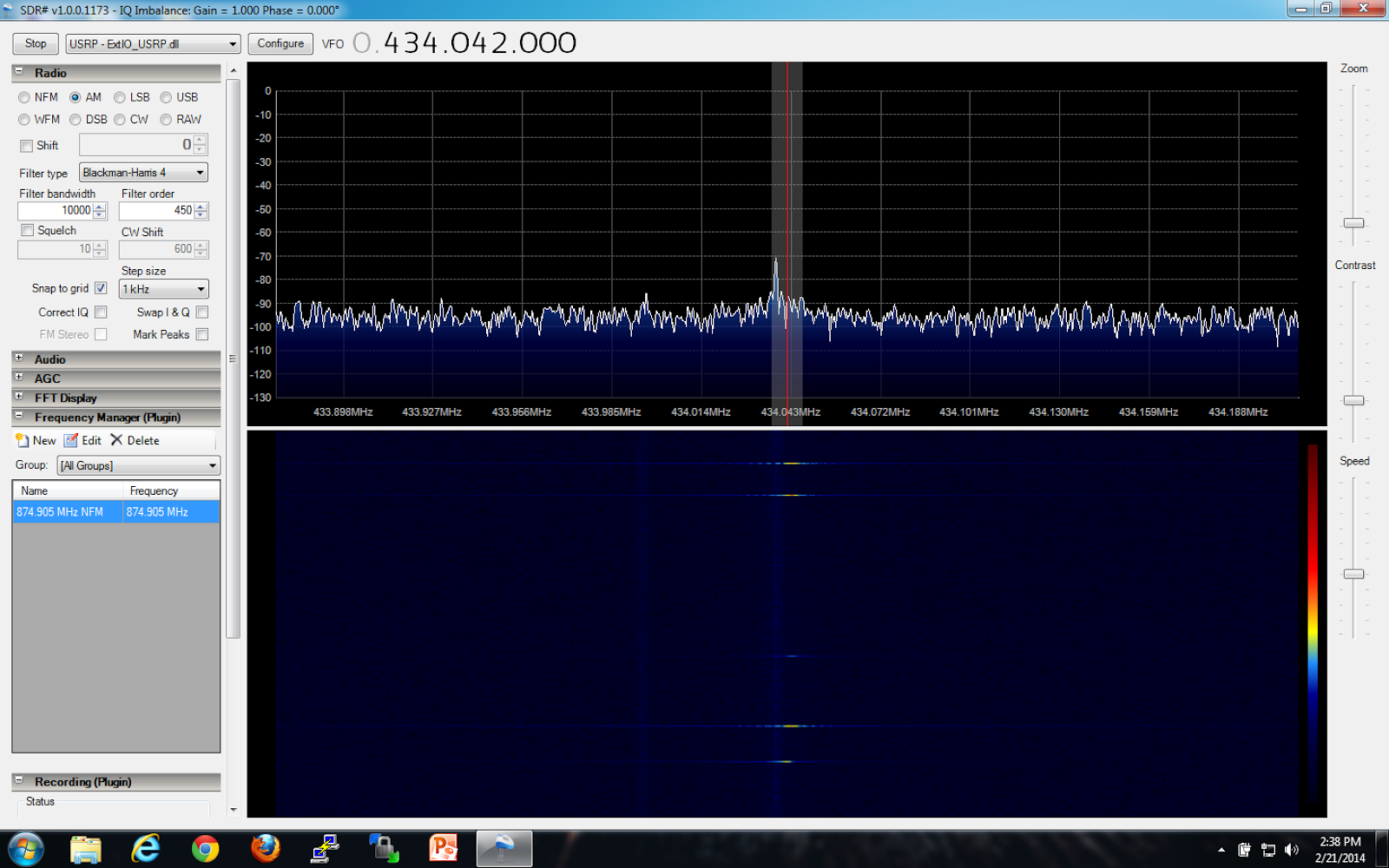

Now that the Arduino is setup, we need to find the signal by using RTL-SDR and SDR-Sharp on our Windows box (you can use gqrx or HDSDR if you are so inclined). Note that the signal generated from the RF link set is not the best. The frequency that it resides on varies at times. However, it should be right around 433 ~ 434MHz. Since this is an AM modulation, select “AM” when listening for the signal.

rtl-sdr-sdr-sharp-433

Once you find the signal, record it as a WAV file. Open the signal in Audacity and examine the transmission. As you can see below, it is a fairly straight-forward signal. Without looking at the source code, we can assume the following: it is NRZ encoded, it has been pulse width modulated (PWM), and it is ASK/OOK (Amplitude Shift Keying / On Off Keying — this essentially means with OOK that the carrier is switched on and off in order to convey the presence and absence of data [binary representation]). The last piece of information we need to gleen from the signal is the baud rate. To calculate the baud rate of a signal, follow the steps below:

  1. Set the tool at the bottom to length and change the measurement to samples

  2. Get the sample rate of the audio (in this case, it is 62,500Hz)

Formula for getting the baud rate:

1  / (samples / samplerate) → 1 / (22 / 62500) = ~2,840bps

arduino_433_00110101

Most of the time, this will work, be accurate enough, and serve as one of our variables in our recipe for RFCat.

Given that this signal has been PWM’d, we need to elongate each pulse width to the appropriate length. Unfortunately, most of this takes trial and error. Thankfully, AndrewMac put together the perfect script which addresses these concerns in conjunction with RFCat. With our RFCat dongle in hand, we will be able to transmit our hand-massaged signal which will hopefully be well-received by our Arduino receiver. When dealing with RFCat, we need to define different settings prior to transmitting our data. Given everything we learned earlier about the signal, we need to define the following as such:

d.setMdmModulation(MOD_ASK_OOK)
d.setFreq(frequency)
d.makePktFLEN(keyLen)
d.setMdmDRate(baudRate)
d.setMaxPower()
d.setMdmSyncMode(0)

We first set the modulation to ASK/OOK, set our target frequency to 434042000Hz (433.925MHz), essentially define how long our message is, set the baud rate to 2840bps, ensure that the transmission is set to full power, and to disable any preamble or syncwords, set Sync Mode to 0.

With the assumption that you have a somewhat solid understanding of RFCat (from previous articles) as well as python, the below script will help us execute the above with the necessary padding and PWM adjustment such that we receive a matching transmission.

/*
Script by AndrewMac of andrewmohawk.com
*/

#!/usr/bin/env python

import sys
import time
from rflib import *
from struct import *
import argparse
import pprint
import bitstring

keyLen = 0
baudRate = (1 / 0.000350) #because the pulse width is 350 in the code
frequency = 434042000
repeatNum = 30

def ConfigureD(d):
	d.setMdmModulation(MOD_ASK_OOK)
	d.setFreq(frequency)
	d.makePktFLEN(keyLen)
	d.setMdmDRate(baudRate)
	d.setMaxPower()
	d.setMdmSyncMode(0)

	print "[+] Radio Config:"
	print " [-] ---------------------------------"
	print " [-] MDMModulation: MOD_ASK_OOK"
	print " [-] Frequency: ",frequency
	print " [-] Packet Length:",keyLen
	print " [-] Baud Rate:",baudRate
	print "[-] ---------------------------------"

#raw what we are sending
bin_str_key = "1100101";

#adjust the key to make it longer so that the pulse width is correct
long_bin_key = "";

for k in bin_str_key:
	x = "*"
	if(k == "1"):
		x = "11100" # <mossmann> A zero is encoded as a longer high pulse (high-high-low)
	if(k == "0"):
		x = "1000" #<mossmann> and a one is encoded as a shorter high pulse (high-low-low).
	long_bin_key = long_bin_key + x

print "[+] Binary (PWM) key:\n\t",long_bin_key,"\n"

padAmount = len(long_bin_key) % 8
for x in range(0,8-padAmount):
	long_bin_key = "0" + long_bin_key

print "[+] Binary Padded (PWM) key:\n\t",long_bin_key,"\n"

key_packed = bitstring.BitArray(bin=long_bin_key).tobytes()

keyLen = len(key_packed)

print "[+] Key len:\n\t",keyLen,"\n"
print "[+] Key:\n\t", key_packed.encode('hex'),"\n"
print ""

d = RfCat()
ConfigureD(d)

print "[%] Transmitting key: ",repeatNum," times\n"

#startString = "11101";
startStringBin = "000000000000000" + "1000100010001000111001000"
startkey_packed = bitstring.BitArray(bin=startStringBin).tobytes()
d.RFxmit(startkey_packed)

d.makePktFLEN(keyLen)
for i in range(0,repeatNum):
	sys.stdout.write( "." )
	d.RFxmit(key_packed)

#endString = "011";
d.RFxmit('\xFF')
sys.stdout.write("Done.\n")

To briefly explain what the code is doing, we are taking our pre-defined settings such as modulation, baud rate, etc. and applying it to our RFCat configuration. We then take our key that we wish to send (already dissected from the Audacity screenshot taken above) and assign it to the variable bin_str_key. We then alter the key so that all ‘1’s are 11100 (high-high-low) and the ‘0’s are 1000 (high-low-low). Our original key (1100101) is now mutated into a new binary PWM key which now appears as 11100111001000100011100100011100. Our pulse width is now accurate. The next step is to pad the binary PWM key, convert it to bytes (so that the data is not sent out as ASCII), and then take the length of the now-in-byte format binary PWM padded key in order to set d.makePktFLEN(keyLen) so that RFCat has a fixed key length when sending the data. Now that the beef of our information has been created, we now need to create the start and end bits so that our Arduino program knows when our data transmission begins and when it ends. After all of this is defined, we then execute the following RFxmit() functions in order: d.RFxmit(startkey_packed), d.RFxmit(key_packed), and d.RFxmit(‘\xFF’). The end transmission appears as: 00000000000000010001000100010001110010001110011100100010001110010001110011111111

This message is then sent ~30 times given that our receiver is a bit finicky, and that it is a requirement for the signal to be sent 10 times to be considered a complete message (as per the rc-switch source code). However, to check and make sure that the signal was originally sent correctly, modify repeatNum to equal ‘1’, re-record the signal in SDR-Sharp, and line-up the result against the originally recorded Arduino frequency. It should look virtually the same.

Take your Arduino and use the following code to receive:

/*
  Simple example for receiving

  http://code.google.com/p/rc-switch/
*/

#include <RCSwitch.h>

RCSwitch mySwitch = RCSwitch();

void setup() {
  Serial.begin(9600);
  mySwitch.enableReceive(0);  // Receiver on interrupt 0 => that is pin #2
}

void loop() {
  if (mySwitch.available()) {

    int value = mySwitch.getReceivedValue();

    if (value == 0) {
      Serial.print("Unknown encoding");
    } else {
      Serial.print("Received ");
      Serial.print( mySwitch.getReceivedValue() );
      Serial.print(" / ");
      Serial.print( mySwitch.getReceivedBitlength() );
      Serial.print("bit ");
      Serial.print("Protocol: ");
      Serial.println( mySwitch.getReceivedProtocol() );
    }

    mySwitch.resetAvailable();
  }
}

Thereafter, configure the receiver component you have and wire it identically as you already have on the Arduino, except rearrange the order of the wires. With my receiving component my pin order from right to left is: GND, DATA, DATA, VCC. In my setup, I only use the first data pin. The below diagram may be of use.
png;base64ab3110451faddc37

http://seeedstudio.com/wiki/images/0/0f/315433RF.jpg

Assuming that your signal matches up, go ahead and run the script with a higher repetition than 1 iteration, such as 30+. With any luck, your signal should have been successfully replayed!

Posted in Uncategorized | 7 Comments

You know how to send my signal — Setting up RFCat from scratch

What is RFCat?

RFCat is firmware/python-client combination written by “atlas”. This software takes the once-limited TI CC1111EMK and broadens its abilities. Taken from the GrrCon page (where you can buy it for $110 pre-flashed and ready for you to use out of the box) describes RFCat as:

@Signed, flashed RfCat USB Radio Dongle (based on Chipcon CC1111EMK-868-900), making the opacity of Proprietary protocols into transparency and capacity for attack

Capable of transmitting/receiving/snooping/SpectrumAnalysis on frequencies between 300-928MHz and more (officially 315, 433, 868, 915MHz ranges, but we’ve seen more than that) using modulations 2FSK, GFSK, MSK, ASK, and OOK and baud rates 0 – 250kbaud

http://grrcon.com/rfcat/

Why would I use this?

Good question. Well, if you are a Software Defined Radio enthusiast like me, this is an excellent tool for testing the robustness of radio protocols on various embedded devices. Since this piece of hardware transceiver with the modulation, etc. taken care of for you, this is the perfect device for helping with your every day exploration of radio signals.

Enough chit-chat. Below I have mapped-out how I “made” my un-flashed CC1111EMK into a fully-functional RFCat dongle. It cost me about $80 going this route; saving a little bit of cash, learning a lot through trial and error, and having the ability to re-flash my device again when a RFCat firmware comes out made this venture worth it.

What do I need?

  • CC1111EMK-868-900 dongle; order here
  • IMG_20140215_194039
  • SmartRF04EB or SmartRF05EB (I got mine from here)
  • IMG_20140215_194122
  • Mac Book Pro or a Linux box with Ubuntu natively installed (I did not have luck with a LiveUSB version of Kali)
  • RFCat
  • SmartRF Flash Programmer
  • Windows 7 box for the flashing of the bootloader and firmware
  1. Install the SmartRF Flash Programmer onto the Windows 7 box (the drivers should be automatically installed so the SmartRF works right as you plug it in)
  2. Hook the ribbon cable (the correct direction; it may be reversed!) to the “DEBUG” set of 10 pins found on the CC1111EMK
  3. Plug in the CC1111EMK into your Windows 7 box (a solid green light should appear)
  4. Plug the other end of the ribbon cable (again, in the correct direction or the chip won’t be recognized) onto the 10 prongs for the SmartRF
  5. Plug the SmartRF into another USB port on your Windows 7 box
  6. Download and extract the RFCat folder onto your desktop
  7. Start up the SmartRF Flash Programmer software you installed earlier
  8. The software may ask you to update the firmware for your SmartRF — go ahead and do this by clicking “OK”, selecting “Program Evaluation Board” from the top dropdown, and then clicking “Update EB Firmware”
  9. Click the “Program CCxxxx SoC or MSP430” from the dropdown box at the top
  10. Make sure that the Chip Type appears as well as the EB type after loading up your flash programmer. At this point, we need to navigate to your root RFCat folder and point “Flash image” to the following file: rfcat_130515\firmware\bins\RfCatDonsCCBootloader-130515.hex and under “Actions”, select “Erase, program and verify”. Click “Perform actions”.
  11. 1
  12. Repeat the above with the second file after you hear Windows reconnecting your device. At this point, your dongle should still have a solid green light. Flash image: rfcat_130515\firmware\bins\RfCatDons-130515.hex but this time, be sure to select “Write protect boot block”. Click “Perform actions” once again.
  13. 2
  14. Remove the debug cable from the now flashed RFCat device (CC1111EMK) and remove it from the USB as well.
  15. On the Mac Book Pro (or native Linux install OS), download and extract RFCat
  16. Make sure you have python-usb and libusb installed on your box. You can perform this installation on OSX by running brew install package_name_here or apt-get install package_name_here for Debian-based distributions of Linux.
  17. Compile RFCat by running: sudo python setup.py install
  18. Create a new file located here: /etc/udev/rules.d/20-rfcat.rules with the following lines:
    SUBSYSTEMS=="usb" ATTRS{idVendor}=="1d50" ATTRS{idProduct}=="6049" SYMLINK+="RFCAT_BL_C"
    SUBSYSTEMS=="usb" ATTRS{idVendor}=="1d50" ATTRS{idProduct}=="604a" SYMLINK+="RFCAT_BL_D"
  19. Thereafter you can either reboot or run sudo udevadm control –reload-rules
  20. Plug in your newly flashed RFCat dongle
  21. Type rfcat -r You will be presented with options as displayed below to get you going:
  22. rfcat
  23. That’s it! You should be good to go!

If you would like further details on an example project while using RFCat, head over to Andrew’s blog — he has a great write-up using RFCat and harnessing Python’s power!

Also wanted to point out that I could not have done this without the help of user “poutine” and “AndrewMac” from the Freenode IRC in channel #rfcat. Thanks again!

Posted in Uncategorized | 7 Comments
